99 2042 02 19 | binder
Jack, 19 pole, solder connection, screw locking, straight, 99 2042 02 19
Unit Price (€ / pc.)
21.3010 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
21.30 € *
Price list
Quantity
Price per unit*
1 pcs.
21.3010 €
10 pcs.
20.0277 €
50 pcs.
18.8258 €
100 pcs.
17.6953 €
*incl. VAT plus shipping costs
Subject to prior sale

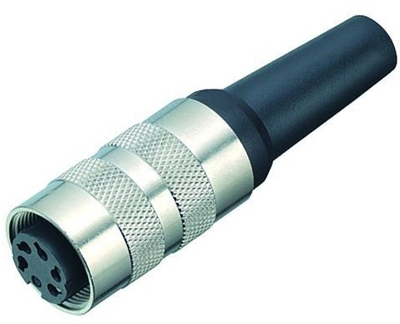

Miniature connector, 99-2042-02-19, BINDER

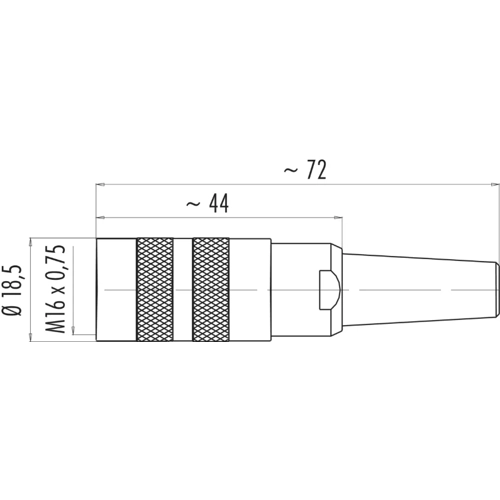

M16 IP40 Female cable connector, Contacts: 19, 6.0-8.0 mm, shieldable, solder, IP40.
Features
- Contact material: CuSn (Bronze)
- Degree of protection: IP40
- Pollution degree: 1
- Overvoltage category: I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | screw locking | |
| Assembly | cable assembly | |
| contact surface | gold-plated | |
| Version | jack | |
| Contact connection | solder connection | |
| Pin number | 19 pole |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
