99 2038 02 16 | binder

Jack, 16 pole, solder connection, screw locking, straight, 99 2038 02 16

Order No.: 70P0479
EAN: 4099891696986
MPN:
99 2038 02 16
Series: 581
99 2038 02 16 binder Other Circular Connectors Image 1
99 2038 02 16 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
22.2887 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
22.29 € *
Price list
Quantity
Price per unit*
1 pcs.
22.2887 €
10 pcs.
20.9440 €
50 pcs.
19.6945 €
100 pcs.
18.5045 €
*incl. VAT plus shipping costs
Subject to prior sale

Female cable connector, 99 2038 02 16, binder

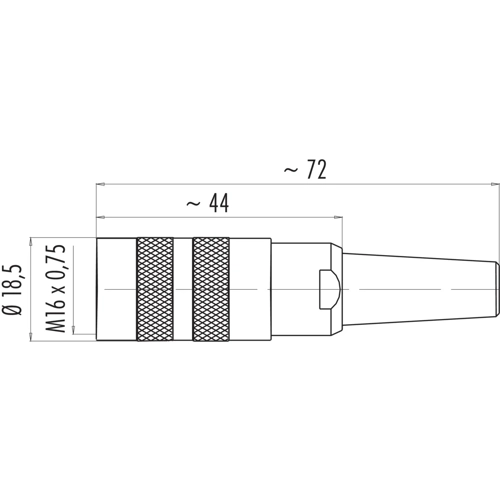

M16 IP40 Female cable connector, Contacts: 16, 6.0-8.0 mm, shieldable, solder, IP40.

Technical specifications
Filter Property Value
Version jack
Orientation straight
Pin number 16 pole
Cable cross-section 0.25 mm²
Additional parts equipped
Contact connection solder connection
Cable diameter 6 to 8 mm
contact surface gold-plated
Assembly cable assembly
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
