99 2037 20 16 | binder

Plug, 16 pole, solder connection, screw locking, straight, 99 2037 20 16

Order No.: 66F262
EAN: 4099889698824
MPN:
99 2037 20 16
Series: 581

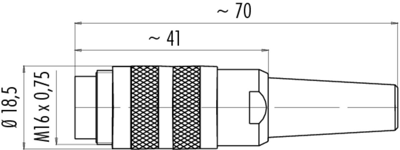

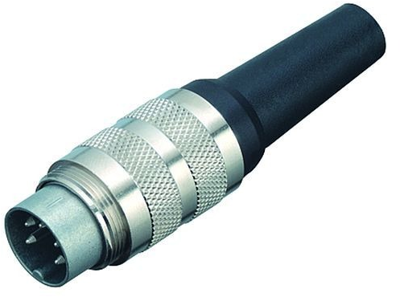

99 2037 20 16 binder Other Circular Connectors Image 1
99 2037 20 16 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
18.9924 € *
Available: 13 pcs.
Total Price:
18.99 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
18.9924 €

Miniature connector, 99 2037 20 16, BINDER

M16 IP40 Male cable connector, Contacts: 16, 6.0-8.0 mm, shieldable, solder, IP40.

Features

  • Contact material: CuZn
  • Degree of protection: IP40
  • Pollution degree: 1
  • Overvoltage category: I
Technical specifications
Filter Property Value
Version plug
Orientation straight
Pin number 16 pole
Contact connection solder connection
contact surface gold-plated
Assembly cable assembly
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
