99 2037 00 16 | binder

Plug, 16 pole, solder connection, screw locking, straight, 99 2037 00 16

Order No.: 70P0476
EAN: 4099891696955
MPN:
99 2037 00 16
Series: 581

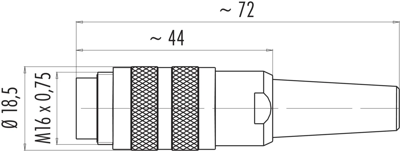

99 2037 00 16 binder Other Circular Connectors Image 1
99 2037 00 16 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
20.3966 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
20.40 € *
Price list
Quantity
Price per unit*
1 pcs.
20.3966 €
10 pcs.
19.1590 €
50 pcs.
18.0166 €
100 pcs.
16.9337 €
*incl. VAT plus shipping costs
Subject to prior sale

Male cable connector, 99 2037 00 16, binder

M16 IP40 Male cable connector, Contacts: 16, 4.0-6.0 mm, shieldable, solder, IP40.

Technical specifications
Filter Property Value
Orientation straight
Contact connection solder connection
Cable diameter 4 to 6 mm
contact surface gold-plated
Cable cross-section 0.25 mm²
Pin number 16 pole
Additional parts equipped
Type of locking screw locking
Version plug
Assembly cable assembly
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
