99 2034 02 14 | binder

Jack, 14 pole, solder cup, screw locking, straight, 99 2034 02 14

Order No.: 66F258
EAN: 4099889727159
MPN:
99 2034 02 14
Series: 581

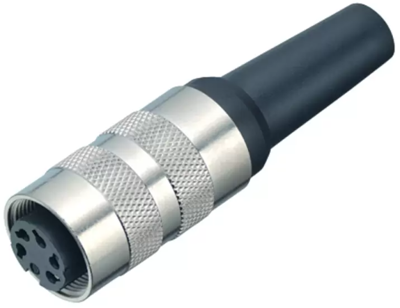

99 2034 02 14 binder Other Circular Connectors Image 1

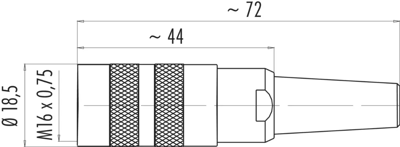

99 2034 02 14 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
24.3712 € *
Available: 30 pcs.
Total Price:
24.37 € *
Price list
Quantity
Price per unit*
1 pcs.
24.3712 €
10 pcs.
21.4438 €
50 pcs.
19.9801 €
150 pcs.
19.0995 €
500 pcs.
18.1356 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector, type Binder 581/680/682.

Compatible with other brands having the same contact arrangement; Contacts: female, copper tin. Male contacts: copper zinc. Contact finish: 2- to 8-pole: silver-plated, 12- and 14-pole: gold-plated. Cable termination: solder terminals, 2- to 8-pole max. 0.75 mm², 12- and 14-pole max. 0.25 mm². Male/female contact carrier: PBT in accordance with UL 94 V-0. Screw interlock. Degree of protection when inserted (IEC 60529): IP 40. Test surge voltage:2- to 5-pole (without 5-pole stereo): 1750 VAC, 5-pole stereo and 8- to 14-pole: 550 VAC, 6- and 7-pole: 910 V. Contact resistance up to 8-pole: max. 5.0 mohm, starting at 12-pole: max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Insertion cycles: at least 500. Operating temperatures: –40 to +85 °C.

For cable outlets from 6.0 to 8.0 mm, type 581.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 99-2034-02-14, 14-pole, 60 V/3.0 A

Technical specifications
Filter Property Value
Version jack
Cable cross-section 0.25 mm²
Pin number 14 pole
Orientation straight
Contact connection solder cup
Type of locking screw locking
Cable diameter 6 to 8 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PBT
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
