99 2018 10 05 | binder
Jack, 5 pole, solder connection, screw locking, straight, 99 2018 10 05
Unit Price (€ / pc.)
12.5069 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
12.51 € *
Price list
Quantity
Price per unit*
1 pcs.
12.5069 €
10 pcs.
11.6263 €
50 pcs.
10.8290 €
100 pcs.
9.7342 €
*incl. VAT plus shipping costs
Subject to prior sale

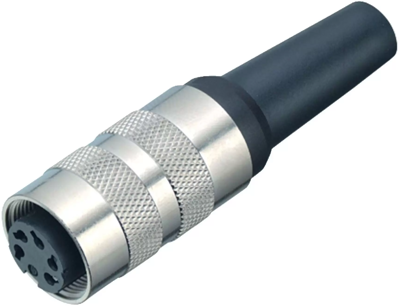

Female cable connector, 99 2018 10 05, binder

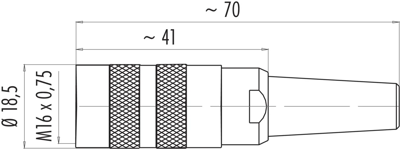

M16 IP40 Female cable connector, Contacts: 5 (stereo), 4.0-6.0 mm, shieldable, solder, IP40.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Cable cross-section | 0.75 mm² | |
| Assembly | cable assembly | |
| contact surface | silver-plated | |
| Version | jack | |
| Contact connection | solder connection | |
| Pin number | 5 pole | |
| Cable diameter | 4 to 6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
