99 2014 210 05 | binder
Jack, 5 pole, screw connection, screw locking, straight, 99 2014 210 05
Unit Price (€ / pc.)
18.1118 € *
Available: 113 pcs.
Total Price:
18.11 € *
Price list
Quantity
Price per unit*
1 pcs.
18.1118 €
10 pcs.
16.8385 €
25 pcs.
15.4938 €
50 pcs.
14.0896 €
*incl. VAT plus shipping costs
Subject to prior sale

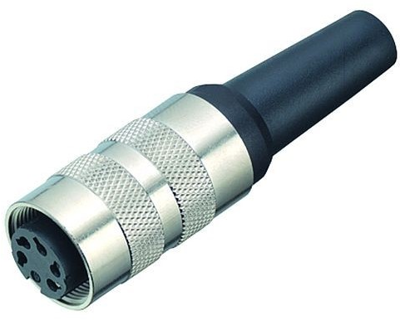

Miniature connector, 99-2014-210-05, BINDER
M16 IP40 Female cable connector, Contacts: 5, 4.0-6.0 mm, shieldable, screw clamp, IP40.
Features
- Contact material: CuSn (Bronze)
- Degree of protection: IP40
- Pollution degree: 1
- Overvoltage category: I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | screw locking | |
| Pin number | 5 pole | |
| contact surface | silver-plated | |
| Contact connection | screw connection | |
| Assembly | cable assembly | |
| Version | jack |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
