99 2013 92 05 | binder
Plug, 5 pole, solder connection, screw locking, straight, 99 2013 92 05
Unit Price (€ / pc.)
15.2201 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
15.22 € *
Price list
Quantity
Price per unit*
1 pcs.
15.2201 €
10 pcs.
14.1491 €
50 pcs.
13.1614 €
100 pcs.
12.2570 €
*incl. VAT plus shipping costs
Subject to prior sale
Male cable connector, 99 2013 92 05, binder

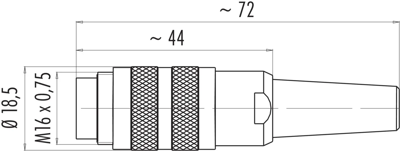

M16 IP40 Male cable connector, Contacts: 5, 6.0-8.0 mm, shieldable, solder, IP40.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| Cable diameter | 6 to 8 mm | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Version | plug | |
| Type of locking | screw locking | |
| Cable cross-section | 0.75 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
