99 2005 09 03 | binder
Plug, 3 pole, solder connection, screw locking, straight, 99 2005 09 03
Unit Price (€ / pc.)
12.8163 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
12.82 € *
Price list
Quantity
Price per unit*
1 pcs.
12.8163 €
10 pcs.
11.9238 €
50 pcs.
11.1027 €
100 pcs.
9.9841 €
*incl. VAT plus shipping costs
Subject to prior sale
Male cable connector, 99 2005 09 03, binder

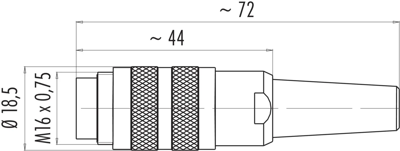

M16 IP40 Male cable connector, Contacts: 3 DIN, 4.0-6.0 mm, shieldable, solder, IP40.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Additional parts | equipped | |
| Cable diameter | 4 to 6 mm | |
| Type of locking | screw locking | |
| Pin number | 3 pole | |
| contact surface | gold-plated | |
| Cable cross-section | 0.75 mm² | |
| Contact connection | solder connection | |
| Assembly | cable assembly | |
| Version | plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
