99 2001 02 02 | binder

Plug, 2 pole, solder connection, screw locking, straight, 99 2001 02 02

Order No.: 70P0389
EAN: 4099891696085
MPN:
99 2001 02 02
Series: 581
99 2001 02 02 binder Other Circular Connectors Image 1
99 2001 02 02 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
9.7104 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.71 € *
Price list
Quantity
Price per unit*
1 pcs.
9.7104 €
10 pcs.
9.0321 €
50 pcs.
8.4014 €
100 pcs.
7.5565 €
*incl. VAT plus shipping costs
**Subject to prior sale

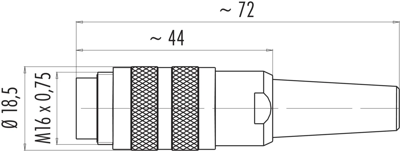

Male cable connector, 99 2001 02 02, binder

M16 IP40 Male cable connector, Contacts: 2, 6.0-8.0 mm, shieldable, solder, IP40.

Technical specifications
Cable diameter 6 to 8 mm
Type of locking screw locking
contact surface silver-plated
Assembly cable assembly
Contact connection solder connection
Cable cross-section 0.75 mm²
Pin number 2 pole
Version plug
Additional parts equipped
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
