99 0996 100 05 | binder

Jack, 5 pole, solder cup, bayonet locking, straight, 99 0996 100 05

Order No.: 67F4620
EAN: 4099889731378
MPN:
99 0996 100 05
Series: 710

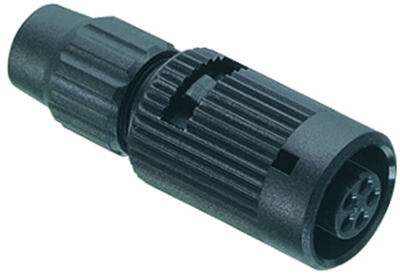

99 0996 100 05 binder Other Circular Connectors Image 1

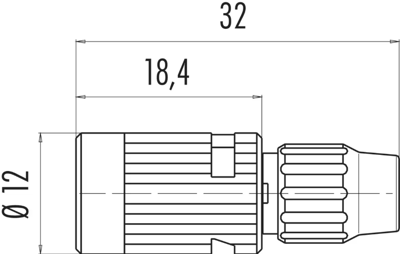

99 0996 100 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
8.3776 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
8.38 € *
Price list
Quantity
Price per unit*
1 pcs.
8.3776 €
10 pcs.
7.5446 €
50 pcs.
6.6283 €
100 pcs.
5.9738 €
*incl. VAT plus shipping costs
Subject to prior sale

SubMiniature circular connector, type Binder 710.

With bayonet lock; Male contact: CuZn. Female contact: CuSn. Contact finish: gold-plated. Solder terminals: max. 0.25 mm². Female contact carrier and receptacle housing: PA 66 to UL 94 V-0. Male contact carrier: PBT to UL 94 V-0. Cable housing: PA 12 to UL 94 HB. Rated voltage: 125 VAC. Test surge voltage: 1750 V. Insulation resistance: 10 Gohm. Degree of protection: IP 40. Operating temperatures: - 40 to +85 °C. Insertion/removal cycles: min. 500.

Female plugs, type 710.

Technical attributes (type, number of poles, rated current (+40 °C), cable outlet): 99-0996-100-05, 5-pole, 3.0 A, 3.0 to 4.0 mm

Technical specifications
Version jack
Cable cross-section 0.25 mm²
Pin number 5 pole
Orientation straight
Contact connection solder cup
Type of locking bayonet locking
Cable diameter 3 to 4 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
