99 0995 100 05 | binder

Plug, 5 pole, solder cup, bayonet locking, straight, 99 0995 100 05

Order No.: 67F4600
EAN: 4099889731316
MPN:
99 0995 100 05
Series: 710

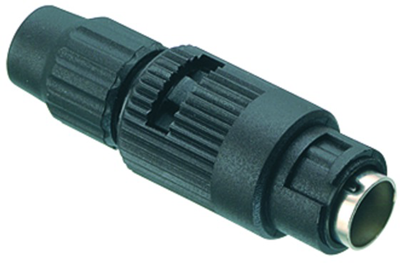

99 0995 100 05 binder Other Circular Connectors Image 1

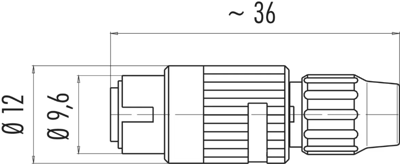

99 0995 100 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.6497 € *
Available: 249 pcs.
Total Price:
12.65 € *
Price list
Quantity
Price per unit*
1 pcs.
12.6497 €
10 pcs.
11.1265 €
50 pcs.
10.3649 €
150 pcs.
9.9246 €
500 pcs.
9.4010 €
*incl. VAT plus shipping costs
Subject to prior sale

SubMiniature circular connector, type Binder 710.

With bayonet lock; Male contact: CuZn. Female contact: CuSn. Contact finish: gold-plated. Solder terminals: max. 0.25 mm². Female contact carrier and receptacle housing: PA 66 to UL 94 V-0. Male contact carrier: PBT to UL 94 V-0. Cable housing: PA 12 to UL 94 HB. Rated voltage: 125 VAC. Rated current (+40°): 3,0 A. Test surge voltage: 1750 V. Insulation resistance: 10 Gohm. Degree of protection: IP 40. Operating temperatures: - 40 to +85 °C. Insertion/removal cycles: min. 500.

Male plugs, type 710.

Technical attributes: 99-0995-100-05, 5-pole

Technical specifications
Filter Property Value
Version plug
Cable cross-section 0.25 mm²
Pin number 5 pole
Orientation straight
Contact connection solder cup
Type of locking bayonet locking
Cable diameter 3 to 4 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
