99 0980 100 04 | binder

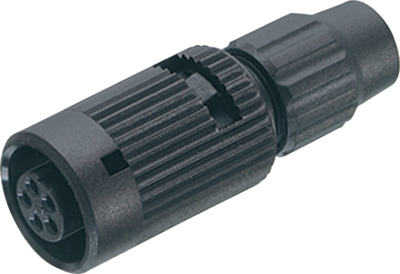

Jack, 4 pole, solder connection, bayonet locking, straight, 99 0980 100 04
Unit Price (€ / pc.)
11.9833 € *
Available: 19 pcs.
Total Price:
11.98 € *
Price list
Quantity
Price per unit*
1 pcs.
11.9833 €
10 pcs.
10.5315 €
50 pcs.
9.8175 €
150 pcs.
9.3891 €
500 pcs.
8.9131 €
*incl. VAT plus shipping costs
Subject to prior sale
Female cable connector, 99-0980-100-04, Franz Binder
Bayonet Female connector, poles 4, 3.0-4.0 mm, unshielded, solder, IP40
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Shell Material | PA | |
| Contact connection | solder connection | |
| Pin number | 4 pole | |
| Cable diameter | 3 to 4 mm | |
| contact surface | gold-plated | |
| Type of locking | bayonet locking | |
| Version | jack | |
| Assembly | cable assembly | |
| Cable cross-section | 0.25 mm² |
Download
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
