99 0979 100 04 | binder

Plug, 4 pole, solder connection, bayonet locking, straight, 99 0979 100 04

Order No.: 66P3628
EAN: 4099889700954
MPN:
99 0979 100 04
Series: 710

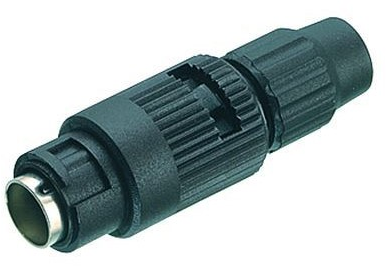

99 0979 100 04 binder Other Circular Connectors Image 1
99 0979 100 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.9968 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
8.00 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9968 €
10 pcs.
7.2114 €
50 pcs.
6.3427 €
100 pcs.
5.7120 €
*incl. VAT plus shipping costs
Subject to prior sale

Subminiature connector, 99-0979-100-04, BINDER

Bayonet Male cable connector, Contacts: 4, 3.0-4.0 mm, unshielded, solder, IP40.

Features

  • Contact material: CuZn
  • Degree of protection: IP40
  • Pollution degree: 1
  • Overvoltage category: II
Technical specifications
Type of locking bayonet locking
contact surface gold-plated
Assembly cable assembly
Contact connection solder connection
Pin number 4 pole
Version plug
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
