99 0976 100 03 | binder

Jack, 3 pole, solder connection, bayonet locking, straight, 99 0976 100 03

Order No.: 66P3625
EAN: 4099889700947
MPN:
99 0976 100 03
Series: 710

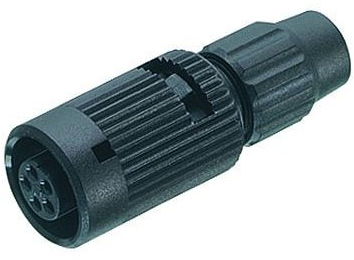

99 0976 100 03 binder Other Circular Connectors Image 1

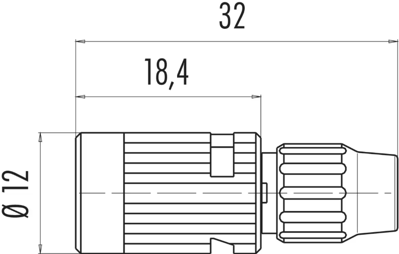

99 0976 100 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.2233 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
7.22 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2233 €
10 pcs.
6.4855 €
50 pcs.
5.7239 €
100 pcs.
5.1408 €
*incl. VAT plus shipping costs
Subject to prior sale

Subminiature connector, 99-0976-100-03, BINDER

Bayonet Female cable connector, Contacts: 3, 3.0-4.0 mm, unshielded, solder, IP40.

Features

  • Contact material: CuSn (Bronze)
  • Degree of protection: IP40
  • Pollution degree: 1
  • Overvoltage category: II
Technical specifications
Type of locking bayonet locking
contact surface gold-plated
Assembly cable assembly
Contact connection solder connection
Pin number 3 pole
Version jack
Additional parts equipped
Orientation straight
Logistics
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
