99 0971 100 02 | binder
Plug, 2 pole, solder connection, bayonet locking, straight, 99 0971 100 02
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
9.8532 € *
Available: 3 pcs.
Total Price:
9.85 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8532 €
10 pcs.
8.6751 €
100 pcs.
7.6041 €
250 pcs.
7.3185 €
1000 pcs.
6.8187 €
*incl. VAT plus shipping costs
Subject to prior sale

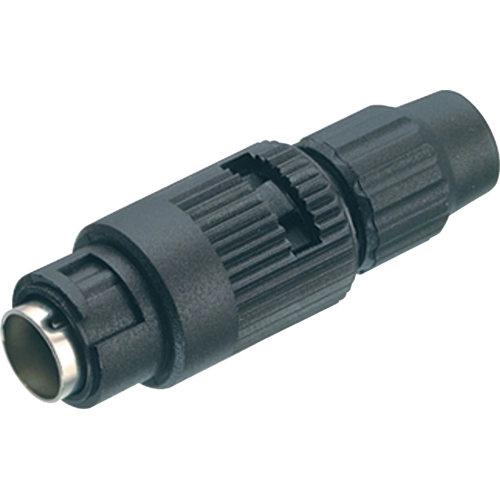

Male cable connector, 99-0971-100-02, Franz Binder
Bayonet Male connector, poles 2, 3.0-4.0 mm, unshielded, solder, IP40
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Cable cross-section | 0.25 mm² | |
| Pin number | 2 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | bayonet locking | |
| Cable diameter | 3 to 4 mm | |
| Assembly | cable assembly | |
| contact surface | gold-plated | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
