99 0771 401 08 | binder
Plug, 8 pole, solder connection, bayonet locking, straight, 99 0771 401 08
Unit Price (€ / pc.)
15.6604 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
15.66 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6604 €
10 pcs.
14.5656 €
50 pcs.
13.5303 €
100 pcs.
12.5902 €
*incl. VAT plus shipping costs
Subject to prior sale

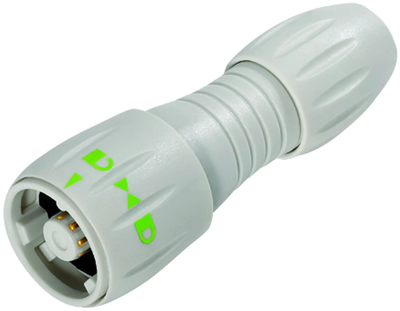

Male cable connector, 99 0771 401 08, binder
Bayonet NCC Male cable connector, Contacts: 8, 4.0-6.0 mm, unshielded, solder, IP67.
Technical specifications
| Version | plug | |
| Cable cross-section | 0.25 mm² | |
| Pin number | 8 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | bayonet locking | |
| Cable diameter | 4 to 6 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | PA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
