99 0759 010 05 | binder

Plug, 5 pole, solder connection, bayonet locking, straight, 99 0759 010 05

Order No.: 70P2341
EAN: 4099891706227
MPN:
99 0759 010 05
Series: 670

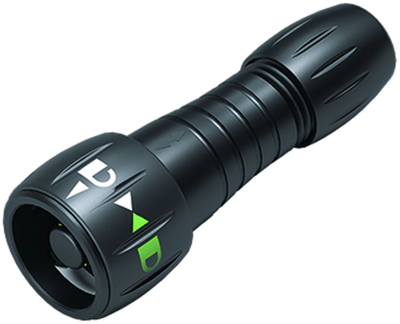

99 0759 010 05 binder Other Circular Connectors Image 1

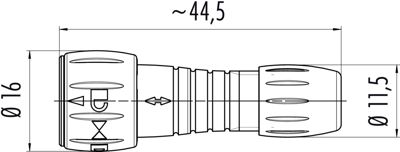

99 0759 010 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.4704 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
14.47 € *
Price list
Quantity
Price per unit*
1 pcs.
14.4704 €
10 pcs.
13.4589 €
50 pcs.
12.5188 €
100 pcs.
11.6263 €
*incl. VAT plus shipping costs
Subject to prior sale

Male cable connector, 99 0759 010 05, binder

Bayonet NCC Male cable connector, Contacts: 5, 3.0-5.0 mm, solder, IP67.

Technical specifications
Version plug
Cable cross-section 0.25 mm²
Pin number 5 pole
Orientation straight
Contact connection solder connection
Type of locking bayonet locking
Cable diameter 3 to 5 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
