99 0740 00 24 | binder

Panel socket, 24 pole, solder cup, screw locking, straight, 99 0740 00 24

Order No.: 67F154
EAN: 4099889731309
MPN:
99 0740 00 24
Series: 694

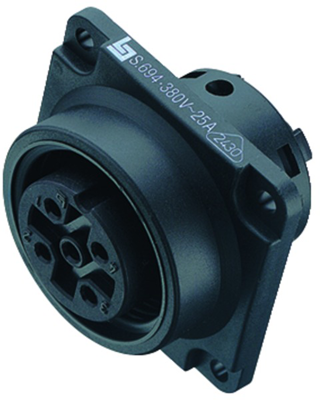

99 0740 00 24 binder Other Circular Connectors Image 1

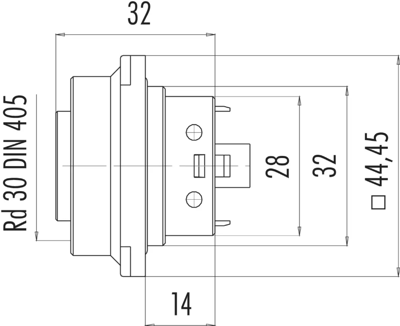

99 0740 00 24 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
36.9852 € *
Available: 10 pcs.
Total Price:
36.99 € *
Price list
Quantity
Price per unit*
1 pcs.
36.9852 €
10 pcs.
35.1883 €
25 pcs.
32.7369 €
50 pcs.
31.7373 €
*incl. VAT plus shipping costs
Subject to prior sale

Connector for automation technology, type Binder 694.

without ground terminal, with screw locking. Male and female cable connectors with cable bushing Pg 13.5. Splash proof; Female contacts: copper tin. Male contacts: copper zinc. Contact surface: gold-plated. Cable connection: solder terminals max. 0.25 mm². Contact carrier PA 66 to UL 94 V-0. Housing: straight/angled PA 66 to UL 94 V-0. Degree of protection in mated state (IEC 60529): IP 65. Cable outlet: 10 to 12 mm.Test surge voltage: 1750 V. Contact resistance: max. 3.0 mohm. Insulation resistance: min. 10 Gohm.Insertion/removal cycles: min. 500. Operating temperatures: - 40 to +100 °C.

Female panel mount connector, type 694.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 99-0740-00-24, 24-pole, 125 V/3.0 A

Technical specifications
Filter Property Value
Type of locking screw locking
Contact connection solder cup
Orientation straight
contact surface gold-plated
Version panel socket
Shell Material PA
Pin number 24 pole
Cable cross-section 0.25 mm²
Additional parts equipped
Assembly flange mounting
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
