99 0738 02 24 | binder

Jack, 24 pole, solder connection, screw locking, straight, 99 0738 02 24

Order No.: 70P0909
EAN: 4099891700799
MPN:
99 0738 02 24
Series: 694
99 0738 02 24 binder Other Circular Connectors Image 1
99 0738 02 24 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
50.8487 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
50.85 € *
Price list
Quantity
Price per unit*
1 pcs.
50.8487 €
5 pcs.
48.8138 €
25 pcs.
46.3743 €
50 pcs.
43.5897 €
*incl. VAT plus shipping costs
Subject to prior sale

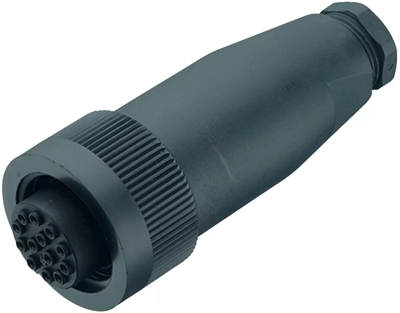

Female cable connector, 99 0738 02 24, binder

RD30 Female cable connector, Contacts: 24, 12.0-14.0 mm, unshielded, solder, IP65.

Technical specifications
Version jack
Cable cross-section 0.25 mm²
Pin number 24 pole
Orientation straight
Contact connection solder connection
Type of locking screw locking
Cable diameter 12 to 14 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
