99 0737 72 24 | binder

Angle plug, 24 pole, solder connection, screw locking, angled, 99 0737 72 24

Order No.: 70P0907
EAN: 4099891700775
MPN:
99 0737 72 24
Series: 694

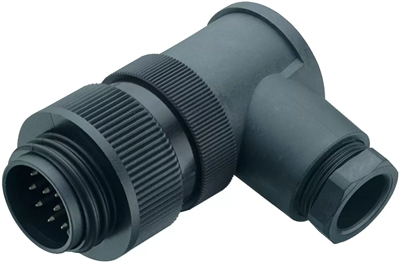

99 0737 72 24 binder Other Circular Connectors Image 1

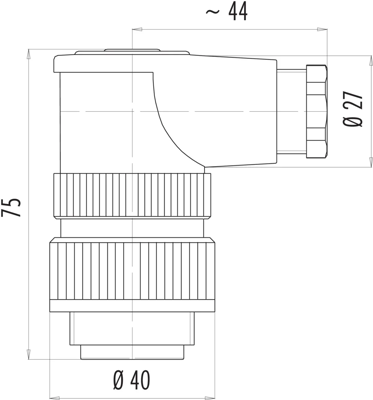

99 0737 72 24 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
41.8880 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
41.89 € *
Price list
Quantity
Price per unit*
1 pcs.
41.8880 €
10 pcs.
39.3652 €
25 pcs.
36.6163 €
50 pcs.
34.0459 €
*incl. VAT plus shipping costs
Subject to prior sale

Male angled connector, 99 0737 72 24, binder

RD30 Male angled connector, Contacts: 24, 12.0-14.0 mm, unshielded, solder, IP65.

Technical specifications
Version angle plug
Cable cross-section 0.25 mm²
Pin number 24 pole
Orientation angled
Contact connection solder connection
Type of locking screw locking
Cable diameter 12 to 14 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
