99 0709 73 05 | binder

Angle plug, 4 pole + PE, screw connection, screw locking, angled, 99 0709 73 05

Order No.: 70P0894
EAN: 4099891700645
MPN:
99 0709 73 05
Series: 694

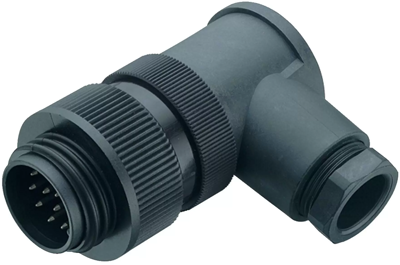

99 0709 73 05 binder Other Circular Connectors Image 1

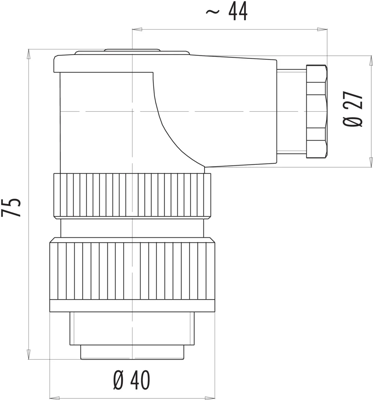

99 0709 73 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
33.2010 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
33.20 € *
Price list
Quantity
Price per unit*
1 pcs.
33.2010 €
10 pcs.
31.2018 €
25 pcs.
29.0122 €
50 pcs.
26.9892 €
*incl. VAT plus shipping costs
Subject to prior sale

Male angled connector, 99 0709 73 05, binder

RD30 Male angled connector, Contacts: 4+PE, 14.0-18.0 mm, unshielded, screw clamp, IP65, ESTI+, VDE.

Technical specifications
Version angle plug
Cable cross-section 2.5 mm²
Pin number 4 pole + PE
Orientation angled
Contact connection screw connection
Type of locking screw locking
Cable diameter 14 to 18 mm
Assembly cable assembly
Additional parts equipped
contact surface silver-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
