99 0684 00 07 | binder

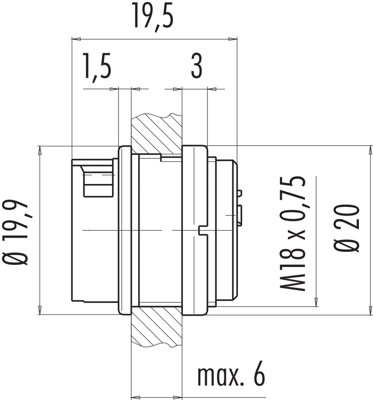

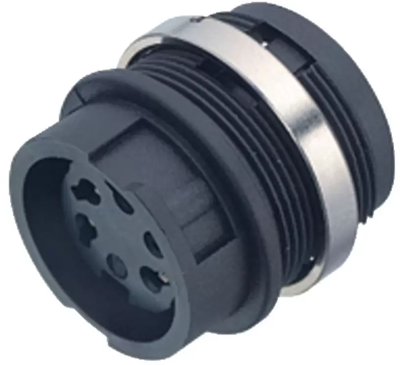

Panel socket, 7 pole, solder connection, bayonet locking, straight, 99 0684 00 07
Unit Price (€ / pc.)
6.5807 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
6.58 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5807 €
10 pcs.
5.9262 €
50 pcs.
5.2122 €
100 pcs.
4.5458 €
*incl. VAT plus shipping costs
Subject to prior sale
Female panel mount connector, 99 0684 00 07, binder
Bayonet Female panel mount connector, Contacts: 7 DIN, unshielded, solder, IP40.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Additional parts | equipped | |
| Type of locking | bayonet locking | |
| Pin number | 7 pole | |
| contact surface | silver-plated | |
| Cable cross-section | 0.75 mm² | |
| Shell Material | PA | |
| Contact connection | solder connection | |
| Assembly | panel mounting | |
| Version | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
