99 0681 00 07 | binder

Plug, 7 pole, solder connection, bayonet locking, straight, 99 0681 00 07

Order No.: 70P2128
EAN: 4099891704988
MPN:
99 0681 00 07
Series: 678

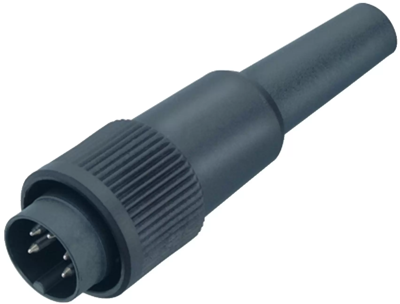

99 0681 00 07 binder Other Circular Connectors Image 1
99 0681 00 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.4732 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.47 € *
Price list
Quantity
Price per unit*
1 pcs.
7.4732 €
10 pcs.
6.7235 €
50 pcs.
5.9262 €
100 pcs.
5.3312 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male cable connector, 99 0681 00 07, binder

Bayonet Male cable connector, Contacts: 7 DIN, 3.0-6.0 mm, unshielded, solder, IP40.

Technical specifications
Version plug
Cable cross-section 0.75 mm²
Pin number 7 pole
Orientation straight
Contact connection solder connection
Type of locking bayonet locking
Cable diameter 3 to 6 mm
Assembly cable assembly
Additional parts equipped
contact surface silver-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
