99 0669 72 24 | binder

Angle plug, 24 pole, solder connection, bayonet locking, angled, 99 0669 72 24

Order No.: 70P0594
EAN: 4099891697907
MPN:
99 0669 72 24
Series: 678

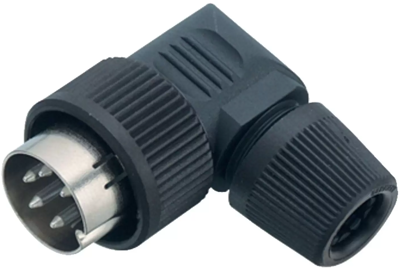

99 0669 72 24 binder Other Circular Connectors Image 1

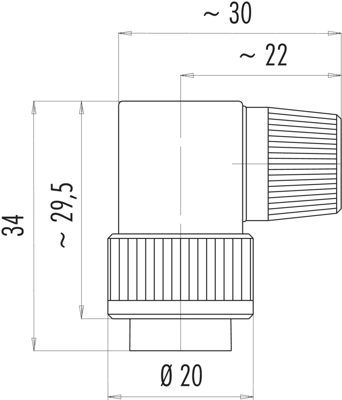

99 0669 72 24 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
31.1066 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
31.11 € *
Price list
Quantity
Price per unit*
1 pcs.
31.1066 €
10 pcs.
29.2383 €
25 pcs.
27.4771 €
50 pcs.
25.8349 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male angled connector, 99 0669 72 24, binder

Bayonet Male angled connector, Contacts: 24, 6.0-8.0 mm, unshielded, solder, IP40.

Technical specifications
Version angle plug
Cable cross-section 0.14 mm²
Pin number 24 pole
Orientation angled
Contact connection solder connection
Type of locking bayonet locking
Cable diameter 6 to 8 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
