99 0668 00 19 | binder

Panel socket, 19 pole, solder connection, bayonet locking, straight, 99 0668 00 19

Order No.: 70P0592
EAN: 4099891697884
MPN:
99 0668 00 19
Series: 678

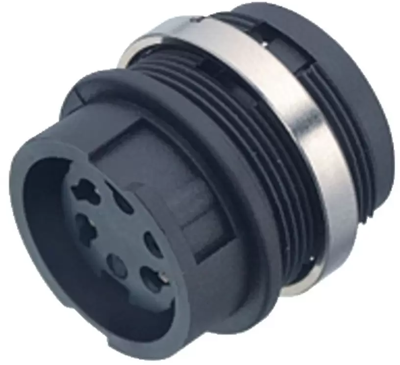

99 0668 00 19 binder Other Circular Connectors Image 1

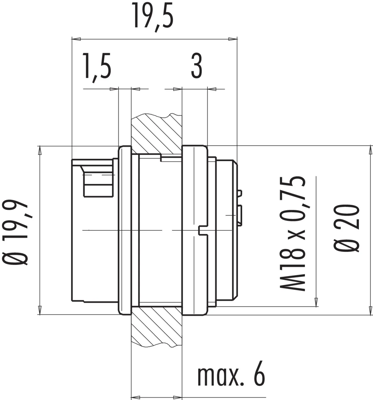

99 0668 00 19 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.2312 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
17.23 € *
Price list
Quantity
Price per unit*
1 pcs.
17.2312 €
10 pcs.
16.0174 €
50 pcs.
14.8988 €
100 pcs.
13.8635 €
*incl. VAT plus shipping costs
Subject to prior sale

Female panel mount connector, 99 0668 00 19, binder

Bayonet Female panel mount connector, Contacts: 19, unshielded, solder, IP40.

Technical specifications
Filter Property Value
Contact connection solder connection
Shell Material PA
Orientation straight
Assembly panel mounting
Additional parts equipped
Version panel socket
Pin number 19 pole
Type of locking bayonet locking
contact surface gold-plated
Cable cross-section 0.25 mm²
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
