99 0665 70 19 | binder

Angle plug, 19 pole, solder connection, bayonet locking, angled, 99 0665 70 19

Order No.: 70P0585
EAN: 4099891697815
MPN:
99 0665 70 19
Series: 678

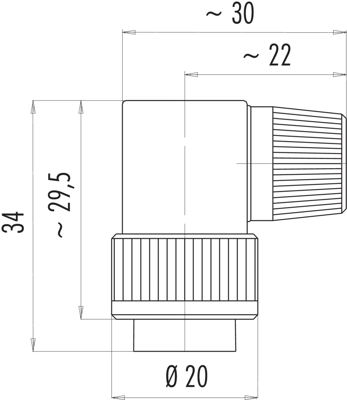

99 0665 70 19 binder Other Circular Connectors Image 1

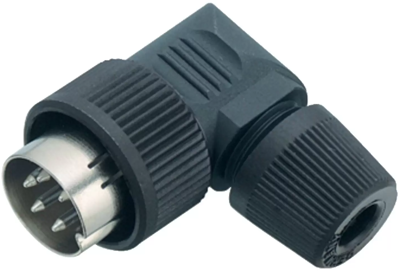

99 0665 70 19 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
28.4529 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
28.45 € *
Price list
Quantity
Price per unit*
1 pcs.
28.4529 €
10 pcs.
26.7512 €
25 pcs.
25.1447 €
50 pcs.
23.6334 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male angled connector, 99 0665 70 19, binder

Bayonet Male angled connector, Contacts: 19, 4.0-6.0 mm, unshielded, solder, IP40.

Technical specifications
Version angle plug
Cable cross-section 0.25 mm²
Pin number 19 pole
Orientation angled
Contact connection solder connection
Type of locking bayonet locking
Cable diameter 4 to 6 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
