99 0658 00 16 | binder

Jack, 16 pole, solder connection, bayonet locking, straight, 99 0658 00 16

Order No.: 70P0579
EAN: 4099891697754
MPN:
99 0658 00 16
Series: 678

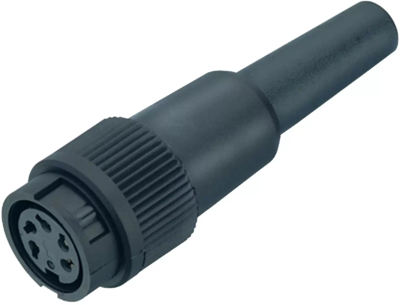

99 0658 00 16 binder Other Circular Connectors Image 1
99 0658 00 16 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
22.6219 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
22.62 € *
Price list
Quantity
Price per unit*
1 pcs.
22.6219 €
10 pcs.
21.2653 €
50 pcs.
19.9920 €
100 pcs.
18.7782 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female cable connector, 99 0658 00 16, binder

Bayonet Female cable connector, Contacts: 16, 3.0-6.0 mm, unshielded, solder, IP40.

Technical specifications
Version jack
Cable cross-section 0.25 mm²
Pin number 16 pole
Orientation straight
Contact connection solder connection
Type of locking bayonet locking
Cable diameter 3 to 6 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
