99 0653 72 14 | binder

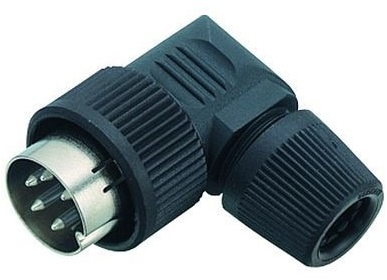

Angle plug, 14 pole, solder connection, bayonet locking, angled, 99 0653 72 14

Order No.: 66P3538
EAN: 4099889700916
MPN:
99 0653 72 14
Series: 678
99 0653 72 14 binder Other Circular Connectors Image 1
99 0653 72 14 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
20.4561 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
20.46 € *
Price list
Quantity
Price per unit*
1 pcs.
20.4561 €
10 pcs.
19.2304 €
50 pcs.
18.0642 €
100 pcs.
17.0051 €
*incl. VAT plus shipping costs
**Subject to prior sale

Miniature connector, 99-0653-72-14, BINDER

Bayonet Male angled connector, Contacts: 14, 6.0-8.0 mm, unshielded, solder, IP40.

Features

  • Contact material: CuZn
  • Degree of protection: IP40
  • Pollution degree: 1
  • Overvoltage category: I
Technical specifications
Type of locking bayonet locking
contact surface gold-plated
Assembly cable assembly
Contact connection solder connection
Pin number 14 pole
Version angle plug
Orientation angled
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
