99 0653 02 14 | binder

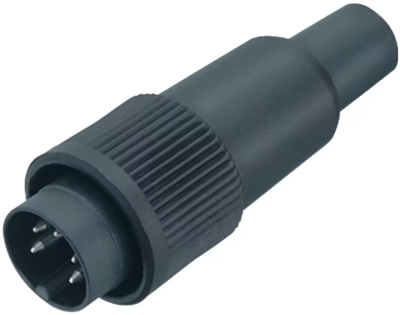

Plug, 14 pole, solder connection, bayonet locking, straight, 99 0653 02 14
Unit Price (€ / pc.)
17.1122 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
17.11 € *
Price list
Quantity
Price per unit*
1 pcs.
17.1122 €
10 pcs.
15.9222 €
50 pcs.
14.8036 €
100 pcs.
13.7683 €
*incl. VAT plus shipping costs
Subject to prior sale
Male cable connector, 99 0653 02 14, binder
Bayonet Male cable connector, Contacts: 14, 6.0-8.0 mm, unshielded, solder, IP40.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Cable cross-section | 0.25 mm² | |
| Pin number | 14 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | bayonet locking | |
| Cable diameter | 6 to 8 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
