99 0624 00 07 | binder

Panel socket, 7 pole, solder cup, bayonet locking, straight, 99 0624 00 07

Order No.: 66F980
EAN: 4099889729306
MPN:
99 0624 00 07
Series: 678

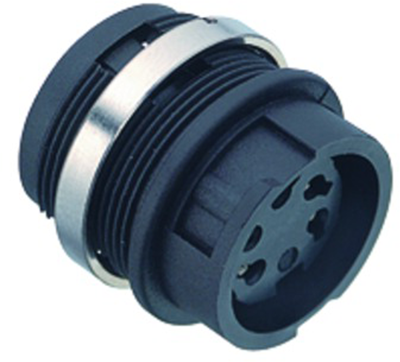

99 0624 00 07 binder Other Circular Connectors Image 1
99 0624 00 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.7588 € *
Available: 60 pcs.
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
7.76 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7588 €
10 pcs.
6.8187 €
100 pcs.
5.9976 €
250 pcs.
5.7715 €
1000 pcs.
5.3788 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector, type Binder 678.

With bayonet quick-lock. Compatible with other products that have the same contact arrangement;Contacts: female contacts copper tin, male contacts copper zinc. Plug contact finish: silver-plated. Cable connection: solder contacts max. 0.75 mm². Contact carrier: PBT in accordance with UL 94 V-0. Housing:PA 66 in accordance with UL 94 HB. Cable exit: max. 4.0 to 6.0 mm. Degree of protection when plugged in (IEC 60529): IP 40. Test surge voltage: 910 VAC. Contact resistance: 5.0 mohm. Insulation resistance: at least 10 Gohm. Insertion cycles: at least 500. Operating temperatures: - 40 to +85 °C.

Female panel mount connector, type 678.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 99-0624-00-07, 7-pole, 125 V/5.0 A

Technical specifications
Filter Property Value
Version panel socket
Cable cross-section 0.75 mm²
Pin number 7 pole
Orientation straight
Contact connection solder cup
Type of locking bayonet locking
Cable diameter 4 to 6 mm
Assembly PCB mounting
Additional parts equipped
contact surface silver-plated
Shell Material PA
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
