99 0621 72 07 | binder

Angle plug, 7 pole, solder connection, bayonet locking, angled, 99 0621 72 07

Order No.: 70P0560
EAN: 4099891697563
MPN:
99 0621 72 07
Series: 678
99 0621 72 07 binder Other Circular Connectors Image 1
99 0621 72 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
16.3863 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
16.39 € *
Price list
Quantity
Price per unit*
1 pcs.
16.3863 €
10 pcs.
15.2320 €
50 pcs.
14.1610 €
100 pcs.
13.1852 €
*incl. VAT plus shipping costs
**Subject to prior sale

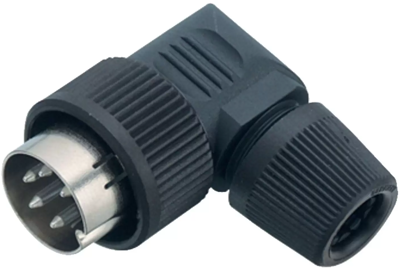

Male angled connector, 99 0621 72 07, binder

Bayonet Male angled connector, Contacts: 7, 6.0-8.0 mm, unshielded, solder, IP40.

Technical specifications
Version angle plug
Cable cross-section 0.75 mm²
Pin number 7 pole
Orientation angled
Contact connection solder connection
Type of locking bayonet locking
Cable diameter 6 to 8 mm
Assembly cable assembly
Additional parts equipped
contact surface silver-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
