99 0613 72 05 | binder

Angle plug, 5 pole, solder cup, bayonet locking, angled, 99 0613 72 05

Order No.: 66F856
EAN: 4099889729054
MPN:
99 0613 72 05
Series: 678

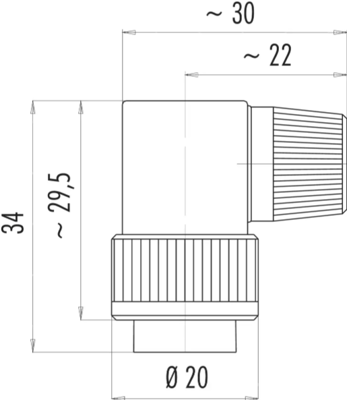

99 0613 72 05 binder Other Circular Connectors Image 1

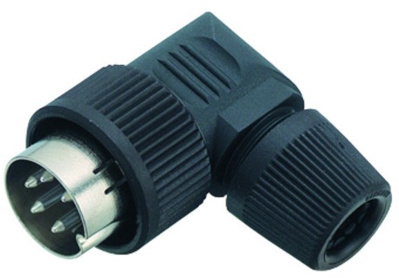

99 0613 72 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
13.7921 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
13.79 € *
Price list
Quantity
Price per unit*
1 pcs.
13.7921 €
10 pcs.
12.8282 €
50 pcs.
11.9357 €
100 pcs.
10.7338 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male connector, 99-0613-72-05, Binder

Bayonet male angled connector, Contacts: 5, 6.0 - 8.0 mm, shielding is not possible, solder, IP40

Technical Data

  • Contact connection: Solder cup
  • Rated voltage: 250 V
  • Number of positions: 5
  • Housing material: PA
  • Contact plating: Au (gold)
Technical specifications
Version angle plug
Cable cross-section 0.75 mm²
Pin number 5 pole
Orientation angled
Contact connection solder cup
Type of locking bayonet locking
Cable diameter 6 to 8 mm
Assembly cable assembly
Additional parts equipped
contact surface silver-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
