99 0601 72 02 | binder

Angle plug, 2 pole, solder connection, bayonet locking, angled, 99 0601 72 02

Order No.: 70P0550
EAN: 4099891697464
MPN:
99 0601 72 02
Series: 678

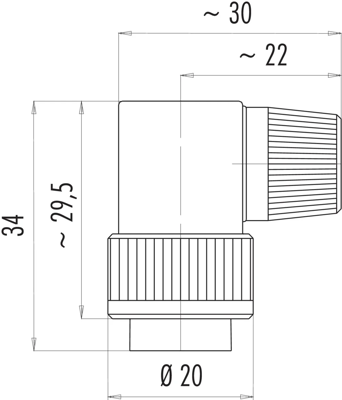

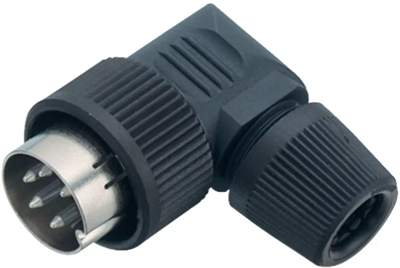

99 0601 72 02 binder Other Circular Connectors Image 1
99 0601 72 02 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.6489 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
14.65 € *
Price list
Quantity
Price per unit*
1 pcs.
14.6489 €
10 pcs.
13.6255 €
50 pcs.
12.6616 €
100 pcs.
11.7691 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male angled connector, 99 0601 72 02, binder

Bayonet Male angled connector, Contacts: 2, 6.0-8.0 mm, unshielded, solder, IP40.

Technical specifications
Version angle plug
Cable cross-section 0.75 mm²
Pin number 2 pole
Orientation angled
Contact connection solder connection
Type of locking bayonet locking
Cable diameter 6 to 8 mm
Assembly cable assembly
Additional parts equipped
contact surface silver-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
