99 0480 102 08 | binder

Jack, 8 pole, solder connection, screw locking, straight, 99 0480 102 08

Order No.: 66P3415
EAN: 4099889700800
MPN:
99 0480 102 08
Series: 711

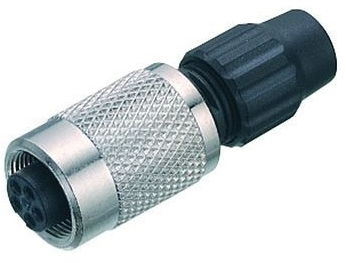

99 0480 102 08 binder Other Circular Connectors Image 1

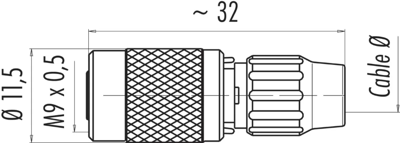

99 0480 102 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.5188 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
12.52 € *
Price list
Quantity
Price per unit*
1 pcs.
12.5188 €
10 pcs.
11.6382 €
50 pcs.
10.8290 €
100 pcs.
9.7461 €
*incl. VAT plus shipping costs
Subject to prior sale

Subminiature connector, 99-0480-102-08, BINDER

M9 IP40 Female cable connector, Contacts: 8, 4.0-5.0 mm, unshielded, solder, IP40.

Features

  • Contact material: CuSn (Bronze)
  • Degree of protection: IP40
  • Pollution degree: 1
  • Overvoltage category: II
Technical specifications
Type of locking screw locking
contact surface gold-plated
Assembly cable assembly
Contact connection solder connection
Pin number 8 pole
Version jack
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
