99 0480 100 08 | binder

Jack, 8 pole, solder connection, screw locking, straight, 99 0480 100 08

Order No.: 71F236
EAN: 4099889703733
MPN:
99 0480 100 08
Series: 711

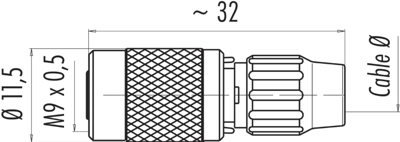

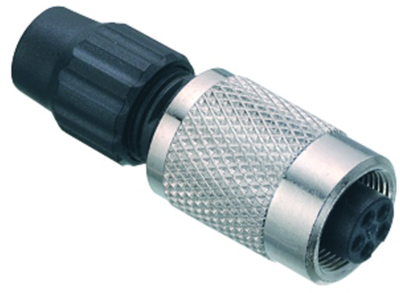

99 0480 100 08 binder Other Circular Connectors Image 1
99 0480 100 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.7199 € *
Available: 5 pcs.
Available in 5 Days: 50 pcs. - if ordered today
Total Price:
15.72 € *
Price list
Quantity
Price per unit*
1 pcs.
15.7199 €
10 pcs.
13.8278 €
50 pcs.
12.8758 €
150 pcs.
12.3165 €
500 pcs.
11.6858 €
*incl. VAT plus shipping costs
Subject to prior sale

Subminiature circular connector, type Binder 711.

With screw lock. Compact and highly reliable; Female contacts: CuSn, male contacts:copper zinc. Contact finish: gold-plated. Cable cross-section: solder contacts. max. 0.14 mm². Contact carrier: plug/jack: PBT/PA 66 to UL 94 V-0. Cable housing: PA 66 to UL 94 V-0. Flanged housing: CuZn. Cable exit: 3.0 to 4.0 mm. Degree of protection housing: (IEC 60529): IP 40. Degree of soiling: 1, Rated voltage: 125 VAC. Test surge voltage: 1750 VAC. Rated current: (at 40 °C): 1.0 A. Contact resistance: max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Mechanical useful life: at least 500 insertion cycles. Operating temperatures: - 40 to +85 °C.

Female cable connectors, type 711.

Type: 99-0480-100-08, 8-pole

Technical specifications
Filter Property Value
Version jack
Contact connection solder connection
Orientation straight
Additional parts equipped
contact surface gold-plated
Pin number 8 pole
Type of locking screw locking
Assembly cable assembly
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
