99 0479 100 08 | binder

Plug, 8 pole, solder connection, screw locking, straight, 99 0479 100 08

Order No.: 71F235
EAN: 4099889703726
MPN:
99 0479 100 08
Series: 711

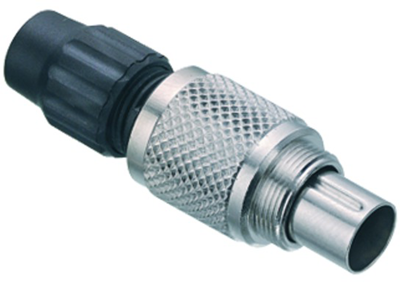

99 0479 100 08 binder Other Circular Connectors Image 1

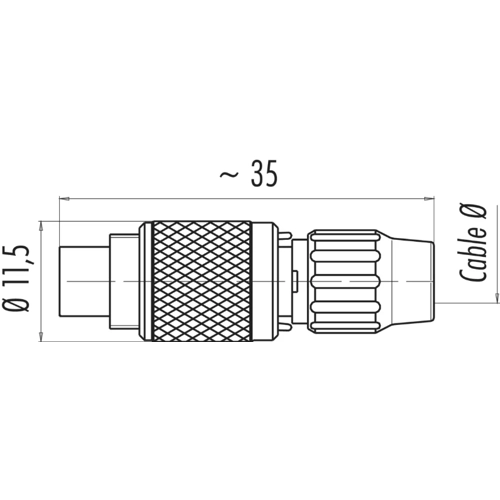

99 0479 100 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.3986 € *
Available: 74 pcs.
Leadtime: On Request **
Total Price:
15.40 € *
Price list
Quantity
Price per unit*
1 pcs.
15.3986 €
10 pcs.
13.5541 €
50 pcs.
12.6259 €
150 pcs.
12.0785 €
500 pcs.
11.4478 €
*incl. VAT plus shipping costs
**Subject to prior sale

Subminiature circular connector, type Binder 711.

With screw lock. Compact and highly reliable; Female contacts: CuSn, male contacts:copper zinc. Contact finish: gold-plated. Cable cross-section: solder contacts. max. 0.14 mm². Contact carrier: plug/jack: PBT/PA 66 to UL 94 V-0. Cable housing: PA 66 to UL 94 V-0. Flanged housing: CuZn. Cable exit: 3.0 to 4.0 mm. Degree of protection housing: (IEC 60529): IP 40. Degree of soiling: 1, Rated voltage: 125 VAC. Test surge voltage: 1750 VAC. Rated current: (at 40 °C): 1.0 A. Contact resistance: max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Mechanical useful life: at least 500 insertion cycles. Operating temperatures: - 40 to +85 °C.

Plugs, type 711.

Type: 99-0479-100-08, 8-pole

Technical specifications
Type of locking screw locking
contact surface gold-plated
Assembly cable assembly
Contact connection solder connection
Pin number 8 pole
Version plug
Additional parts equipped
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
