99 0476 102 07 | binder

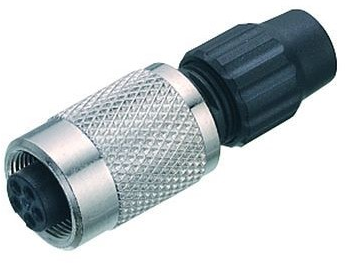

Jack, 7 pole, solder connection, screw locking, straight, 99 0476 102 07
Unit Price (€ / pc.)
11.9119 € *
Available: 50 pcs.
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
11.91 € *
Price list
Quantity
Price per unit*
1 pcs.
11.9119 €
10 pcs.
11.0670 €
50 pcs.
10.2935 €
100 pcs.
9.2582 €
*incl. VAT plus shipping costs
Subject to prior sale
Subminiature connector, 99-0476-102-07, BINDER

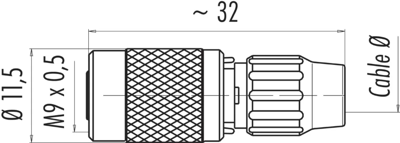

M9 IP40 Female cable connector, Contacts: 7, 4.0-5.0 mm, unshielded, solder, IP40.
Features
- Contact material: CuSn (Bronze)
- Degree of protection: IP40
- Pollution degree: 1
- Overvoltage category: II
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Assembly | cable assembly | |
| Type of locking | screw locking | |
| Pin number | 7 pole | |
| Version | jack |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
