99 0475 102 07 | binder

Plug, 7 pole, solder connection, screw locking, straight, 99 0475 102 07

Order No.: 66P3409
EAN: 4099889700770
MPN:
99 0475 102 07
Series: 711

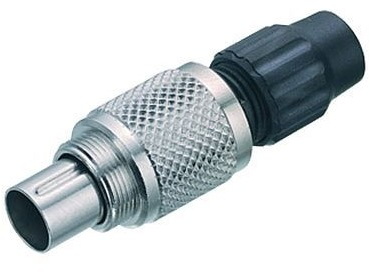

99 0475 102 07 binder Other Circular Connectors Image 1

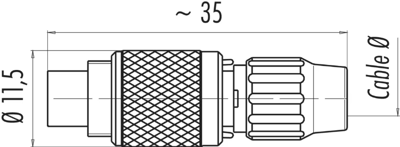

99 0475 102 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.8171 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
10.82 € *
Price list
Quantity
Price per unit*
1 pcs.
10.8171 €
10 pcs.
10.0674 €
50 pcs.
9.3415 €
100 pcs.
8.4252 €
*incl. VAT plus shipping costs
Subject to prior sale

Subminiature connector, 99-0475-102-07, BINDER

M9 IP40 Male cable connector, Contacts: 7, 4.0-5.0 mm, unshielded, solder, IP40.

Features

  • Contact material: CuZn
  • Degree of protection: IP40
  • Pollution degree: 1
  • Overvoltage category: II
Technical specifications
Type of locking screw locking
contact surface gold-plated
Assembly cable assembly
Contact connection solder connection
Pin number 7 pole
Version plug
Orientation straight
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
