99 0451 106 14 | binder

Angle plug, 14 pole, solder connection, screw locking, angled, 99 0451 106 14

Order No.: 70P1611
EAN: 4099891704247
MPN:
99 0451 106 14
Series: 723

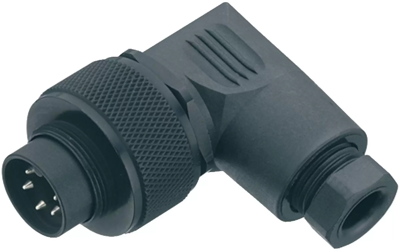

99 0451 106 14 binder Other Circular Connectors Image 1
99 0451 106 14 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
33.6413 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
33.64 € *
Price list
Quantity
Price per unit*
1 pcs.
33.6413 €
10 pcs.
31.6183 €
25 pcs.
29.4049 €
50 pcs.
27.3462 €
*incl. VAT plus shipping costs
Subject to prior sale

Male angled connector, 99 0451 106 14, binder

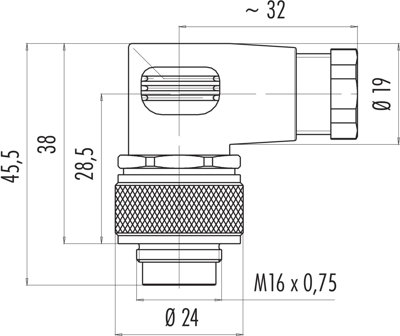

M16 IP67 Male angled connector, Contacts: 14, 4.0-6.0 mm, unshielded, solder, IP67.

Technical specifications
Version angle plug
Cable cross-section 0.25 mm²
Pin number 14 pole
Orientation angled
Contact connection solder connection
Type of locking screw locking
Cable diameter 4 to 6 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
