99 0440 16 04 | binder

Jack, 4 pole, screw connection, screw locking, straight, 99 0440 16 04

Order No.: 66P3401
EAN: 4099889700763
MPN:
99 0440 16 04
Series: 714

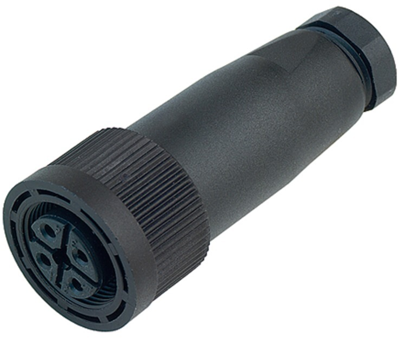

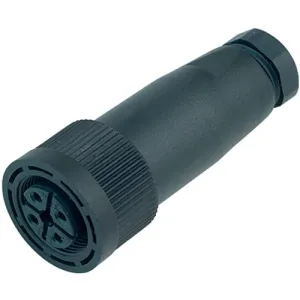

99 0440 16 04 binder Other Circular Connectors Image 1
99 0440 16 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
20.0158 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
20.02 € *
Price list
Quantity
Price per unit*
1 pcs.
20.0158 €
10 pcs.
18.8258 €
50 pcs.
17.6834 €
100 pcs.
16.6243 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor-actuator connector, 99-0440-16-04, BINDER

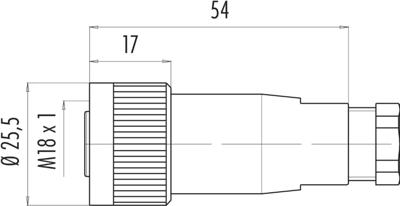

M18 Female cable connector, Contacts: 4, 10.0-12.0 mm, unshielded, screw clamp, IP67.

Features

  • Contact material: CuZn
  • Degree of protection: IP67
  • Pollution degree: 3
  • Overvoltage category: III
Technical specifications
Type of locking screw locking
contact surface CuSnZn
Assembly cable assembly
Contact connection screw connection
Pin number 4 pole
Version jack
Orientation straight
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
