99 0426 115 08 | binder
Jack, 8 pole, solder connection, screw locking, straight, 99 0426 115 08
Unit Price (€ / pc.)
38.5322 € *
Available: 77 pcs.
Total Price:
38.53 € *
Price list
Quantity
Price per unit*
1 pcs.
38.5322 €
10 pcs.
33.9031 €
50 pcs.
31.5945 €
150 pcs.
30.2022 €
*incl. VAT plus shipping costs
Subject to prior sale

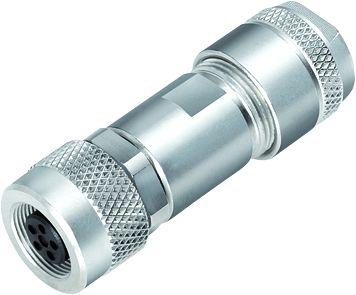

Female cable connector, 99-0426-115-08, Franz Binder
M9 IP67 Female connector, poles 8, 4.0-5.5 mm, shieldable, solder, IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Shell Material | PA | |
| Cable diameter | 4 to 5.5 mm | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Version | jack | |
| Type of locking | screw locking | |
| Cable cross-section | 0.14 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
