99 0421 115 07 | binder

Plug, 7 pole, solder connection, screw locking, straight, 99 0421 115 07

Order No.: 66P3247
EAN: 4099889700602
MPN:
99 0421 115 07
Series: 712

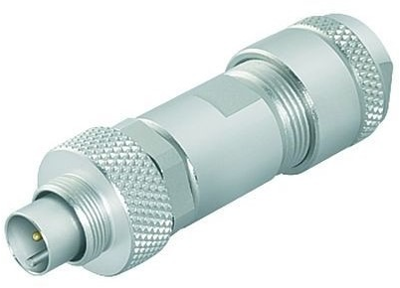

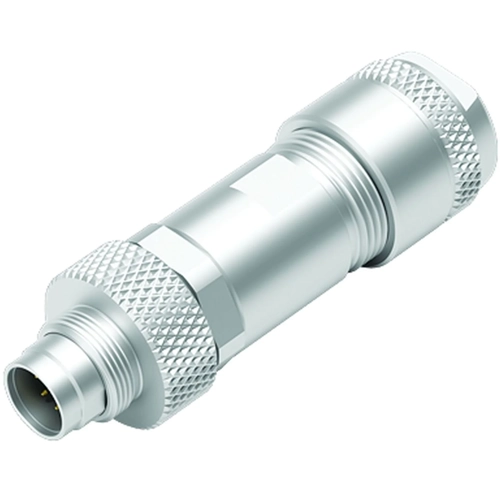

99 0421 115 07 binder Other Circular Connectors Image 1
99 0421 115 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
18.0166 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
18.02 € *
Price list
Quantity
Price per unit*
1 pcs.
18.0166 €
10 pcs.
16.9456 €
50 pcs.
15.9103 €
100 pcs.
14.9702 €
*incl. VAT plus shipping costs
**Subject to prior sale

Subminiature connector, 99-0421-115-07, BINDER

M9 IP67 Male cable connector, Contacts: 7, 4.0-5.5 mm, shieldable, solder, IP67.

Features

  • Contact material: CuZn
  • Degree of protection: IP67
  • Pollution degree: 1
  • Overvoltage category: II
Technical specifications
Type of locking screw locking
contact surface gold-plated
Assembly cable assembly
Contact connection solder connection
Pin number 7 pole
Version plug
Orientation straight
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
