99 0421 10 07 | binder

Plug, 7 pole, solder connection, screw locking, straight, 99 0421 10 07

Order No.: 66P3245
EAN: 4099889700596
MPN:
99 0421 10 07
Series: 712

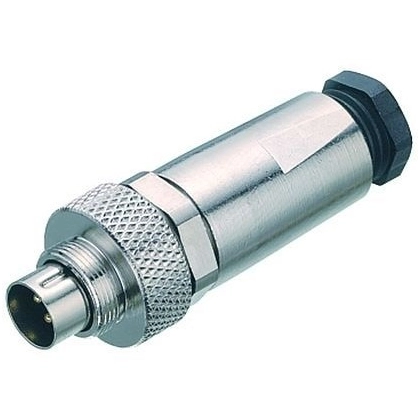

99 0421 10 07 binder Other Circular Connectors Image 1
99 0421 10 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
21.0511 € *
Available: 201 pcs.
Available in 5 Days: 100 pcs.
Leadtime: On Request **
Total Price:
21.05 € *
Price list
Quantity
Price per unit*
1 pcs.
21.0511 €
10 pcs.
18.5283 €
50 pcs.
17.2669 €
150 pcs.
16.4934 €
500 pcs.
15.6604 €
*incl. VAT plus shipping costs
**Subject to prior sale

Subminiature connector, 99-0421-10-07, BINDER

M9 IP67 Male cable connector, Contacts: 7, 3.5-5.0 mm, shieldable, solder, IP67.

Features

  • Contact material: CuZn
  • Degree of protection: IP67
  • Pollution degree: 1
  • Overvoltage category: II
Technical specifications
Version plug
Cable cross-section 0.14 mm²
Pin number 7 pole
Orientation straight
Contact connection solder connection
Type of locking screw locking
Cable diameter 3.5 to 5 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA/CuZn
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
