99 0421 00 07 | binder

Plug, 7 pole, solder connection, screw locking, straight, 99 0421 00 07

Order No.: 67F308
EAN: 4099889702514
MPN:
99 0421 00 07
Series: 712

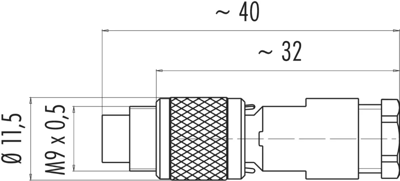

99 0421 00 07 binder Other Circular Connectors Image 1

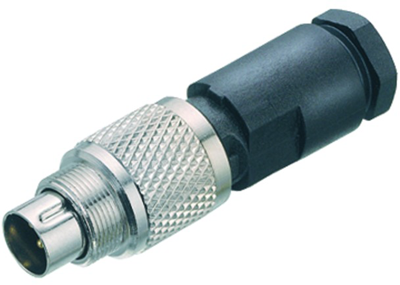

99 0421 00 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
27.7746 € *
Available: 238 pcs.
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
27.77 € *
Price list
Quantity
Price per unit*
1 pcs.
27.7746 €
10 pcs.
24.4426 €
50 pcs.
22.7766 €
150 pcs.
21.7651 €
500 pcs.
20.6584 €
*incl. VAT plus shipping costs
Subject to prior sale

Subminiature circular connector, type Binder 712.

With screw lock and solder terminals for simple assembly; Female contacts: copper tin. Male contacts:copper zinc. Contact finish: gold-plated. Wiring cross-section: max. 0.14 mm². Contact carrier:male/female: PBT/PA 66 to UL 94 V-0. Cable housing: PA 66 to UL 94 HB. Flanged housing: copper zinc.Cable outlet: 3.5 to 5.0 mm. Degree of protection housing: (IEC 60529): IP 67. Degree of soiling: 1. Rated voltage: 125 VAC. Test surge voltage: 1750 VAC. Rated current: (at 40 °C): 4.0 A. Contact resistance:max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Mechanical useful life: at least 500 insertion cycles. Operating temperatures: - 40 to +85 °C.

Cable plug connectors, straight, type 712.

Type: 99-0421-00-07, 7-pole

Technical specifications
Filter Property Value
Version plug
Contact connection solder connection
Orientation straight
Additional parts equipped
contact surface gold-plated
Pin number 7 pole
Type of locking screw locking
Assembly cable assembly
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
