99 0414 115 05 | binder
Jack, 5 pole, solder connection, screw locking, straight, 99 0414 115 05
Unit Price (€ / pc.)
24.7044 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
24.70 € *
Price list
Quantity
Price per unit*
1 pcs.
24.7044 €
10 pcs.
23.2288 €
50 pcs.
21.8365 €
100 pcs.
20.5156 €
*incl. VAT plus shipping costs
Subject to prior sale
Female cable connector, 99 0414 115 05, binder

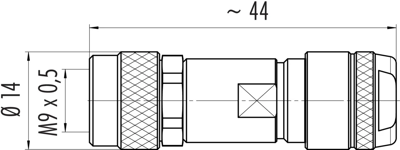

M9 IP67 Female cable connector, Contacts: 5, 4.0-5.5 mm, shieldable, solder, IP67.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| Cable cross-section | 0.25 mm² | |
| Version | jack | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Cable diameter | 4 to 5.5 mm | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
