99 0409 115 04 | binder

Plug, 4 pole, solder connection, screw locking, straight, 99 0409 115 04

Order No.: 66P3233
EAN: 4099879097347
MPN:
99 0409 115 04
Series: 712
99 0409 115 04 binder Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
20.6703 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
20.67 € *
Price list
Quantity
Price per unit*
1 pcs.
20.6703 €
10 pcs.
19.0162 €
50 pcs.
17.3026 €
100 pcs.
15.5771 €
*incl. VAT plus shipping costs
**Subject to prior sale

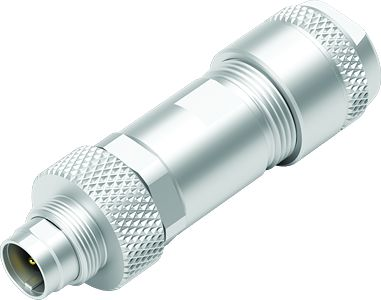

Male cable connector, 99-0409-115-04, Franz Binder

M9 IP67 Male connector, poles 4, 4.0-5.5 mm, shieldable, solder, IP67

Technical specifications
Cable diameter 4 to 5.5 mm
Type of locking screw locking
contact surface gold-plated
Assembly cable assembly
Contact connection solder connection
Cable cross-section 0.25 mm²
Pin number 4 pole
Version plug
Shell Material PBT
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
