99 0409 10 04 | binder
Plug, 4 pole, solder connection, screw locking, straight, 99 0409 10 04
Unit Price (€ / pc.)
16.5529 € *
Available: 284 pcs.
Leadtime: On Request **
Total Price:
16.55 € *
Price list
Quantity
Price per unit*
1 pcs.
16.5529 €
10 pcs.
14.5775 €
50 pcs.
13.5898 €
150 pcs.
12.9710 €
500 pcs.
12.3284 €
*incl. VAT plus shipping costs
**Subject to prior sale

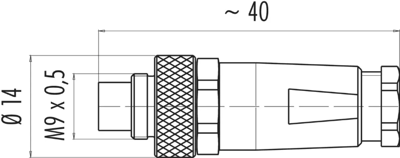

Subminiature connector, 99-0409-10-04, BINDER
M9 IP67 Male cable connector, Contacts: 4, 3.5-5.0 mm, shieldable, solder, IP67.
Features
- Contact material: CuZn
- Degree of protection: IP67
- Pollution degree: 1
- Overvoltage category: II
Technical specifications
| Version | plug | |
| Cable cross-section | 0.25 mm² | |
| Pin number | 4 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | screw locking | |
| Cable diameter | 3.5 to 5 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | PA/CuZn |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
