99 0406 10 03 | binder

Jack, 3 pole, solder connection, screw locking, straight, 99 0406 10 03

Order No.: 66P3228
EAN: 4099889700527
MPN:
99 0406 10 03
Series: 712

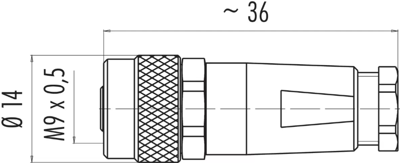

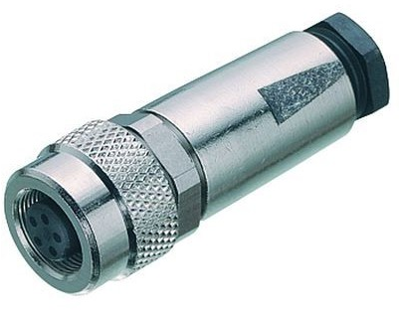

99 0406 10 03 binder Other Circular Connectors Image 1
99 0406 10 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
22.00 € *
Available: 1 pcs.
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
22.00 € *
Price list
Quantity
Price per unit*
1 pcs.
22.00 €
10 pcs.
19.35 €
50 pcs.
18.03 €
150 pcs.
17.23 €
500 pcs.
16.36 €
*plus VAT and shipping costs
Subject to prior sale

Subminiature connector, 99-0406-10-03, BINDER

M9 IP67 Female cable connector, Contacts: 3, 3.5-5.0 mm, shieldable, solder, IP67.

Features

  • Contact material: CuSn (Bronze)
  • Degree of protection: IP67
  • Pollution degree: 1
  • Overvoltage category: II
Technical specifications
Filter Property Value
Contact connection solder connection
Orientation straight
Assembly cable assembly
Version jack
Pin number 3 pole
Type of locking screw locking
contact surface gold-plated
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
