99 0405 115 03 | binder

Plug, 3 pole, solder connection, screw locking, straight, 99 0405 115 03

Order No.: 66P3226
EAN: 4099889700510
MPN:
99 0405 115 03
Series: 712

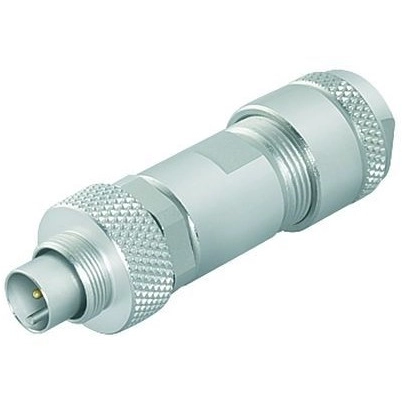

99 0405 115 03 binder Other Circular Connectors Image 1
99 0405 115 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.9107 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
14.91 € *
Price list
Quantity
Price per unit*
1 pcs.
14.9107 €
10 pcs.
13.8754 €
50 pcs.
12.8996 €
100 pcs.
12.0071 €
*incl. VAT plus shipping costs
**Subject to prior sale

Subminiature connector, 99-0405-115-03, BINDER

M9 IP67 Male cable connector, Contacts: 3, 4.0-5.5 mm, shieldable, solder, IP67.

Features

  • Contact material: CuZn
  • Degree of protection: IP67
  • Pollution degree: 1
  • Overvoltage category: II
Technical specifications
Type of locking screw locking
contact surface gold-plated
Assembly cable assembly
Contact connection solder connection
Pin number 3 pole
Version plug
Orientation straight
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
